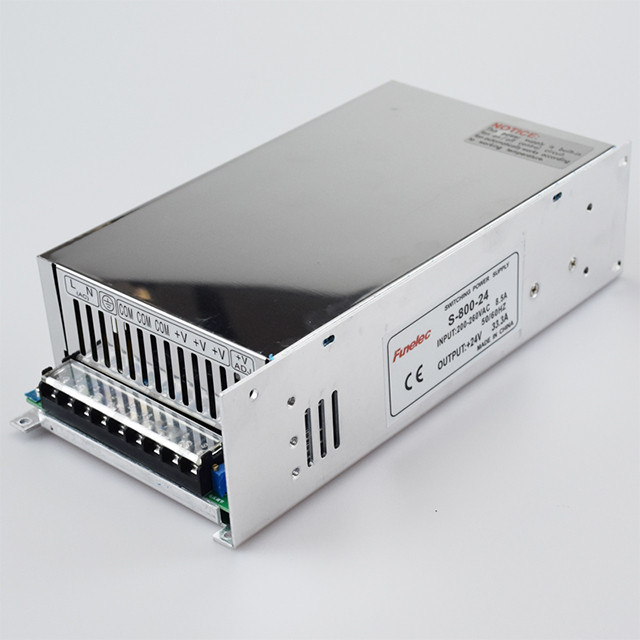

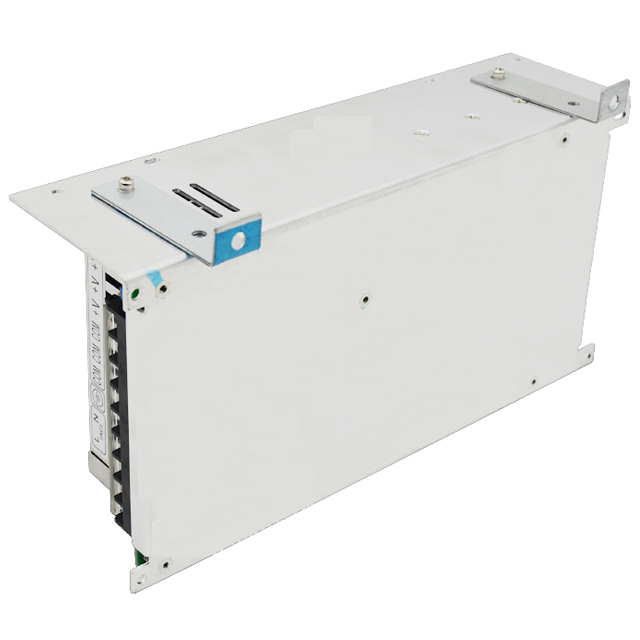

MS-800

Single output switching power supply CE certification
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • MS-800

  • FUNELEC

800W Switching power supply

DC output voltage

12V

24V

36V

48V

60V

80V

110V

Output voltage tolerance

±1%

±1%

±1%

±1%

±1%

±1%

±1%

Rated output current

66A

33A

22A

16A

13A

10A

7A

Output current range

0-66A

0-33A

0-22A

0-16A

0-13A

0-10A

0-7A

Output current range

120

mVp-p

120 mVp-p

120 mVp-p

120 mVp-p

120 mVp-p

120 mVp-p

120 mVp-p

Incoming line stability

±1%

±1%

±1%

±1%

±1%

±1%

±1%

Load stability

±1%

±1%

±1%

±1%

±1%

±1%

±1%

DC output power

800W

800W

800W

800W

800W

800W

800W

Efficiency

85%

85%

85%

85%

85%

85%

85%

DC voltage adjustable   range

0-12V

0-24V

0-36V

0-48V

0-60V

0-80V

0-110V

Input voltage range

190-240VAC/47~63HZ

Input current

5A/230V

Impulse current

46A/230V

Leakage current

<3.5MA/240VAC

Overload protection

120%~150%, type: cut off   the output, reset: automatic recovery

Overvoltage protection

120%-150%

High temperature   protection

ERH3≥60℃ 70℃ fan start, ≤55℃~60℃ fan close, ≥80℃~85℃, cut off   output (5~15V)~(24~48V)

Temperature coefficient

±0.03%/℃(0-50℃)

Start, rise, hold time

1S,100MS,50MS

Vibration resistance

10~500HZ, 2G 10min,/1   cycle, duration 60 minutes, each axis

Pressure resistance

Between input and output:   1.5KVAC Input and shell: 1.5KVAC Output and shell: 0.5KVAC

Isolation resistance

between input and output;   input and shell, output and shell; 500VDC/100MΩ

Working temperature and   humidity

-10℃~+60℃ (refer to output   characteristic diagram), 20%~90%RH

Storage temperature and   humidity

-20℃~+85℃,10%~95%RH

Dimensions

238*124*65mm

Weight

1.32KG

Safety standards

GB4949UL60950,EN60950

EMC standard

According to GB9254   EN55022 EN55024 Class A design




AAVN focuses on providing LED switching power supplies, waterproof switching power supplies, rainproof switching power supplies and AC and DC power adapters. With overload protection, overvoltage protection and high temperature protection. AAVN has won the favor of customers for its high efficiency, reliability and long life. Each switching power supply is very safe and stable after 5 tests. All our forces have CE, ROHS ,CCC certification. Our switching power supplies are widely used in the field of industrial automation, indoor and outdoor LED lighting, and LED lighting projects.
