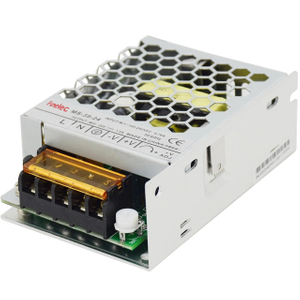

S-200

Low-power switching power supply, multiple protection
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • S-200

  • FUNELEC

Model
S-200-5S-200-12S-200-24S-200-48
OutputDC   output Voltage5V12V24V48V
Voltage tolerance±1.0%±1.0%±1.0%±1.0%
Rated Current40A16.7A8.3A4.2A
Related Power200w200w200w200w
Wave&Noise180mVp-p180mVp-p240mVp-p240mVp-p
Adjustable range for DC Voltage±10%±10%±10%±10%
Set up,rise,hold up time200ms    100ms  20ms
InputVoltage   Range85   ~132VAC  170-264VAC  47-63HZ 240-370VDC
Input Current2.4A/115VAC   1.2A/230VAC
Efficiency82%82%85%%87%
AC inrush currentCold   start current  30A/115V 60A/230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated   output power 105-150% start overload protection
Protection type: cutoff output, recovery after restart   power
Over voltage5.75V-6.75V13.8V-16.2V27.6V-32.4V55V-64.8V
Hiccup mode,recovers automatically after fault condition
EnvironmentWorking   temp humidity-10~+60°C   20%~90%RH
Stor temp, humidity-20~+85°C   20%~90%RH Non-condensing
SafetyWithstand voltageI/P-O/P:1.5KVAC    1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
StandardSafety   standardFit   UL1012
ReferDesign   refer to GB4943,UL60950,EN60950
EMC standardDesign   refer to GB9254,EN55022 Class A
SizesizeL199*W110*H50mm
Package0.85kg,   20pcs/17kg
