EDR-120

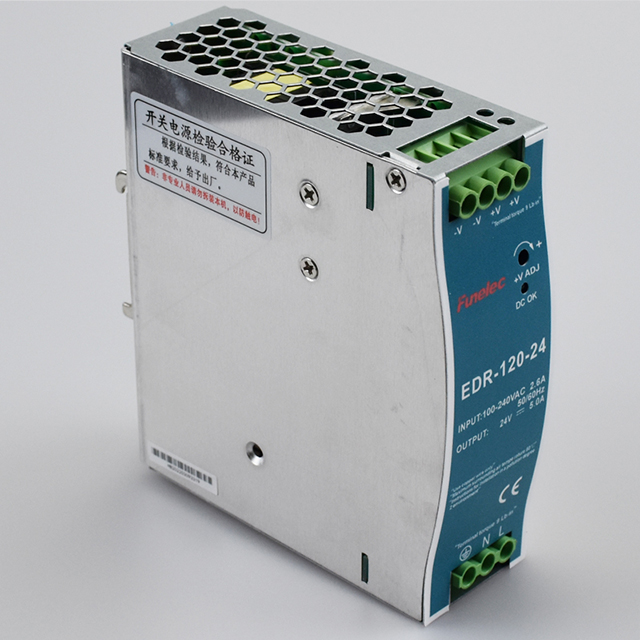

EDR-120-24 Single group guide rail switching power supply CE certification, high efficiency
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • EDR-120

  • FUNELEC

Model
EDR-120-12EDR-120-24
OutputDC   output Voltage12V24V
Voltage tolerance±1.0%±1.0%
Rated Current10A5A
Related Power120w120w
Wave&Noise80mVp-p150mVp-p
Adjustable range for DC Voltage±10%±10%
Set up,rise,hold up time800ms    600ms  50ms
InputVoltage   Range85 ~   264VAC  47-63HZ 120-370VDC
Input Current1A/115VAC   0.5A/230VAC
Efficiency77%82%
AC inrush currentCold   start current  15A/115V 30A /230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated   output power 105-135% start overload protection
Protection type: cutoff output, recovery after restart   power
Over voltage13.8V-16.2V27.6V-32.4V
Hiccup mode,recovers automatically after fault condition
EnvironmentWorking   temp humidity-10~+60°C   20%~90%RH
Stor temp, humidity-20~+85°C   20%~90%RH Non-condensing
SafetyWithstand voltageI/P-O/P:1.5KVAC    1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
StandardSafety   standardFit   UL1012
ReferDesign   refer to GB4943,UL60950,EN60950
EMC standardDesign   refer to GB9254,EN55022 Class A
Sizesize40*W125.5*H113.5mm
Package0.52kg,
