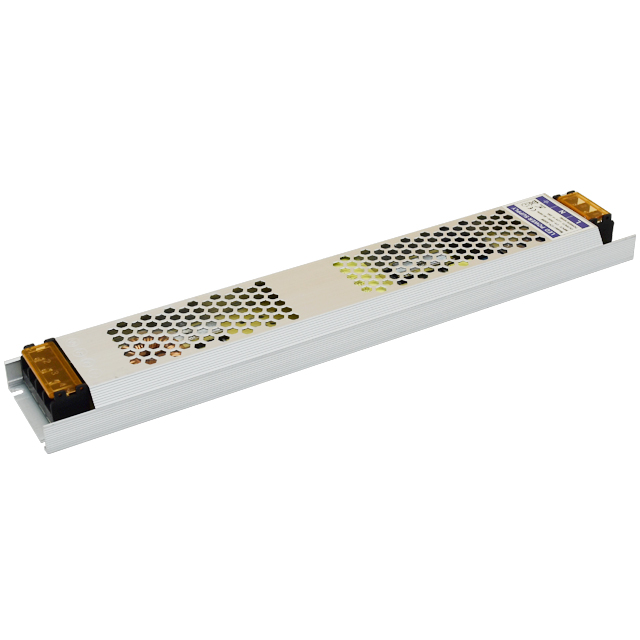

LED-300
FUNELEC
| Model | LED-300-12 | LED-300-24 | |
| Output | DC output Voltage | 12V | 24V |
| Voltage tolerance | ±1.0% | ±1.0% | |
| Rated Current | 25A | 12.5A | |
| Related Power | 300w | 300w | |
| Wave&Noise | 120mVp-p | 150mVp-p | |
| Voltage adjust range | 12V | 24V | |
| Set up,rise time | 500ms 30ms/230VAC 1000ms,30ms/115VAC at full load | ||
| hold up time | 50ms/230VAC 20ms/115VAC at full load | ||
| Input | Voltage Range | 85 ~ 264VAC 47-63HZ 120-370VDC | |
| Input Current | 0.55A/115VAC 0.35A/230VAC | ||
| Efficiency | 81% | 84% | |
| AC inrush current | Cold start current 35A/115V 70A/230VAC | ||
| Leakage current | <1mA/220VAC | ||
| Protection | Overload | Above 105%-160% rated output power | |
| hiccup mode, recovery automatically after fault condistion is removed | |||
| Over voltage | 15.6-18V | 57.6-64.8V | |
| Shut down o/p voltage, re-power on to recover | |||
| Function | DC OK active single | Relay contact rating(max) :30V/1A resistive | |
| Environment | Working temp humidity | -20~+70°C 20%~90%RH | |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||
| Safety | safety standards | UL508,TUV EN60950-1 approved | |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.5KVA | ||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25 %RH | ||
| EMC emission | Compliance to EN55011,EN55022,EN61204-3 class B,EN61000-3-2,-3 | ||
| Size | size | 308*53*22mm W*H*D | |
| Package | 0.5kg, | ||
