MDR-60

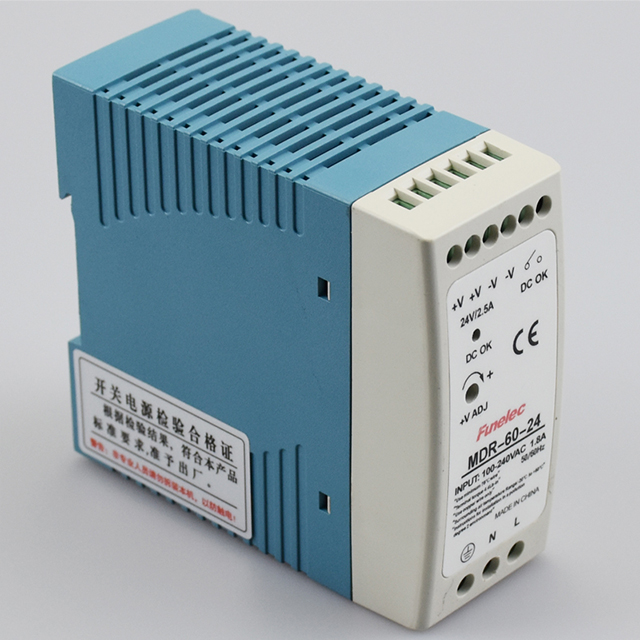

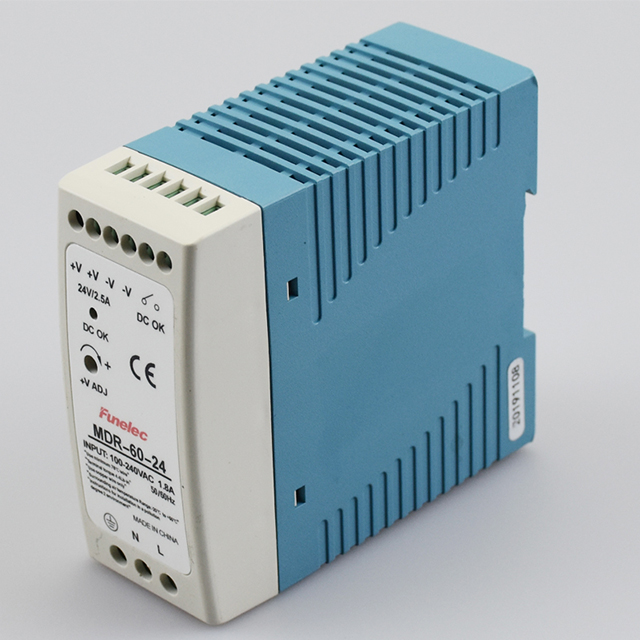

MDR-60-24 DIN-rail switching power supply is easy to install and small in size
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • MDR-60

  • FUNELEC

Model
MDR-60-5MDR-60-12MDR-60-24
OutputDC   output Voltage5V12V24V
Voltage tolerance±1.0%±1.0%±1.0%
Rated Current12A5A2.5A
Related Power60w60w60w
Wave&Noise80mVp-p120mVp-p150mVp-p
Voltage adjust range5-6V12-15V48-56V
Set up,rise time500ms    30ms/230VAC  1000ms,30ms/115VAC at full load
hold up time50ms/230VAC   20ms/115VAC at full load
InputVoltage   Range85 ~   264VAC  47-63HZ 120-370VDC
Input Current0.55A/115VAC   0.35A/230VAC
Efficiency77%81%84%
AC inrush currentCold   start current  35A/115V 70A/230VAC
Leakage current<1mA/240VAC
ProtectionOverloadAbove   105%-160% rated output power
hiccup mode, recovery automatically after fault condistion   is removed
Over voltage6.25-7.25V15.6-18V57.6-64.8V
Shut down o/p voltage, re-power on  to recover
FunctionDC   OK active singleRelay   contact rating(max) :30V/1A resistive
EnvironmentWorking   temp humidity-20~+70°C   20%~90%RH
Stor temp, humidity-20~+85°C   20%~90%RH Non-condensing
Safetysafety   standardsUL508,TUV   EN60950-1 approved
Withstand voltageI/P-O/P:3KVAC   I/P-FG:2KVA O/P-FG:0.5KVA
Isolation resistanceI/P-O/P,I/P-FG,O/P-FG:100M   Ohms/500VDC/25 %RH
EMC emissionCompliance   to EN55011,EN55022,EN61204-3 class B,EN61000-3-2,-3
Sizesize40*90*100mm   W*H*D
Package0.45kg,
