S-2500W

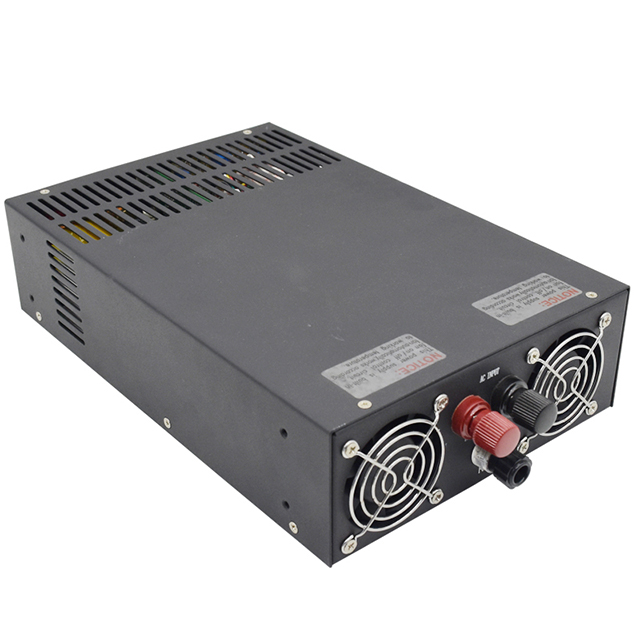

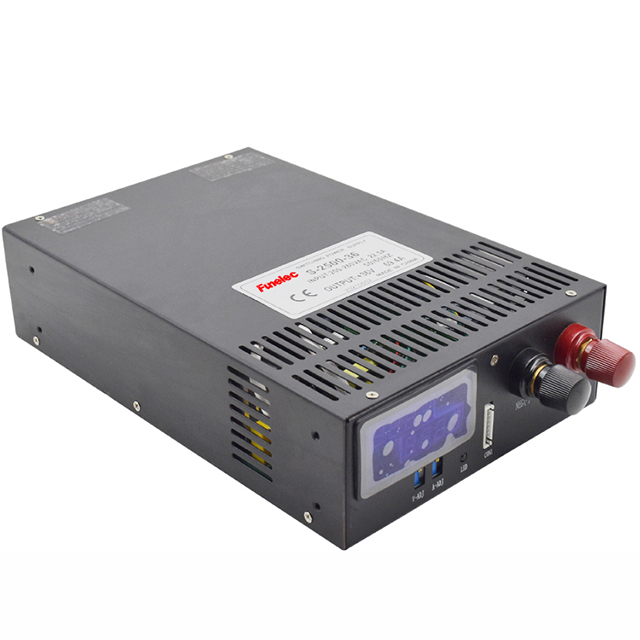

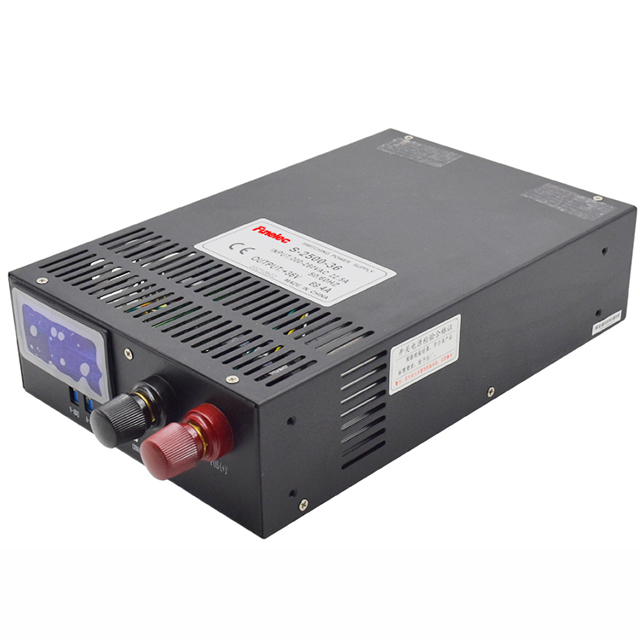

S-2500W Single group output high power switching power supply
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • S-2500

  • FUNELEC

Origin: Wenzhou, China

Brand Name: FUNELEC

Model: S- 2500 – 12V

Output power: 2500 W

Output type: single group

Input voltage: 110 v / 220 v/380V, 85-264 vac

Output voltage: 12 V

Output frequency: 47-63 Hz

Output current: 200A

Size: 285*185*70mm

Weight: 4KG

Quality assurance: 1 year

Protection: short circuit, overload, over voltage, over temperature

Efficiency: >85%

Working temperature: -10 ~ 60℃

Safety certificate: CE ROSH CCC

2500W Switching power supply

DC output voltage

12V

24V

36V

48V

60V

80V

110V

Output voltage tolerance

±0.1%

±0.1%

±0.1%

±0.1%

±0.1%

±0.1%

±0.1%

Rated output current

200A

104A

69A

55A

41A

31A

22A

Output current range

0-200A

0-104A

0-69A

0-55A

0-41A

0-31A

0-22A

Output current range

200

mVp-p

200 mVp-p

200 mVp-p

200 mVp-p

200 mVp-p

200 mVp-p

200 mVp-p

Incoming line stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

DC output power

2500W

2500W

2500W

2500W

2500W

2500W

2500W

Efficiency

88%

88%

88%

88%

88%

88%

88%

DC voltage adjustable   range

0-12V

0-24V

0-36V

0-48V

0-60V

0-80V

0-110V

Input voltage range

190-240VAC/47~63HZ

Input current

7A/230V

Impulse current

50A/230V

Leakage current

<3.5MA/240VAC

Overload protection

105%~150%, type: cut off   the output, reset: automatic recovery

Overvoltage protection

115%-135%

High temperature   protection

≥70℃ cut off output   (0-50℃)

Temperature coefficient

±0.03%/℃(0-50℃)

Start, rise, hold time

1.5S,50MS,20MS

Vibration resistance

10~500HZ, 2G 10min,/1   cycle, duration 60 minutes, each axis

Pressure resistance

Between input and output:   1.5KVAC Input and shell: 1.5KVAC Output and shell: 0.5KVAC

Isolation resistance

between input and output;   input and shell, output and shell; 500VDC/100MΩ

Working temperature and   humidity

-10℃~+60℃ (refer to   output characteristic diagram), 20%~90%RH

Storage temperature and   humidity

-20℃~+85℃,10%~95%RH

Dimensions

285*185*70mm

Weight

4KG

Safety standards

Meet UL1950 requirements   (not apply for marking)

EMC standard

CISPR22(EN55022),IEC1000-4,2,3,4,5,6,8,11  IEC1000-3-2




FUNELEC focuses on providing LED switching power supplies, waterproof switching power supplies, rainproof switching power supplies and AC and DC power adapters. With overload protection, overvoltage protection and high temperature protection. FUNELEC has won the favor of customers for its high efficiency, reliability and long life. Each switching power supply is very safe and stable after 5 tests. All our forces have CE, ROHS ,CCC certification. Our switching power supplies are widely used in the field of industrial automation, indoor and outdoor LED lighting, and LED lighting projects
