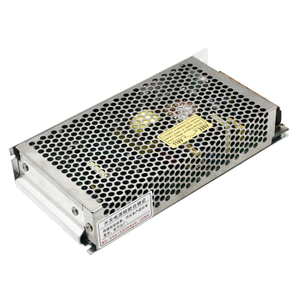

S-100

Low-power switching power supply, constant current and constant voltage Multiple protection
Availability:
Quantity:
  • S-100
  • AAVN MEN WELL
Model
S-100-5S-100-12S-100-24S-100-48
OutputDC   output Voltage5V12V24V48V
Voltage tolerance±1.0%±1.0%±1.0%±1.0%
Rated Current20A8.5A4.5A2A
Related Power100w100w100w100w
Wave&Noise100mVp-p100mVp-p100mVp-p100mVp-p
Adjustable range for DC Voltage±10%±10%±10%±10%
Set up,rise,hold up time200ms    100ms  20ms
InputVoltage   Range85~132VAC   170-264VAC selected by switch 47-63HZ 240-370VDC
Input Current1.6A/115VAC   0.8A/230VAC
Efficiency81%81%84%%84%
AC inrush currentCold   start current  15A/115V 30A /230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated   output power 105-150% start overload protection
Protection type: cutoff output, recovery after restart   power
Over voltage5.75V-6.75V13.8V-16.2V27.6V-32.4V55V-64.8V
Hiccup mode,recovers automatically after fault condition
EnvironmentWorking   temp humidity-10~+60°C   20%~90%RH
Stor temp, humidity-20~+85°C   20%~90%RH Non-condensing
SafetyWithstand voltageI/P-O/P:1.5KVAC    1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
StandardSafety   standardFit   UL1012
ReferDesign   refer to GB4943,UL60950,EN60950
EMC standardDesign   refer to GB9254,EN55022 Class A
SizesizeL199*W98*H38mm
Package0.65kg,   30pcs/19kg
