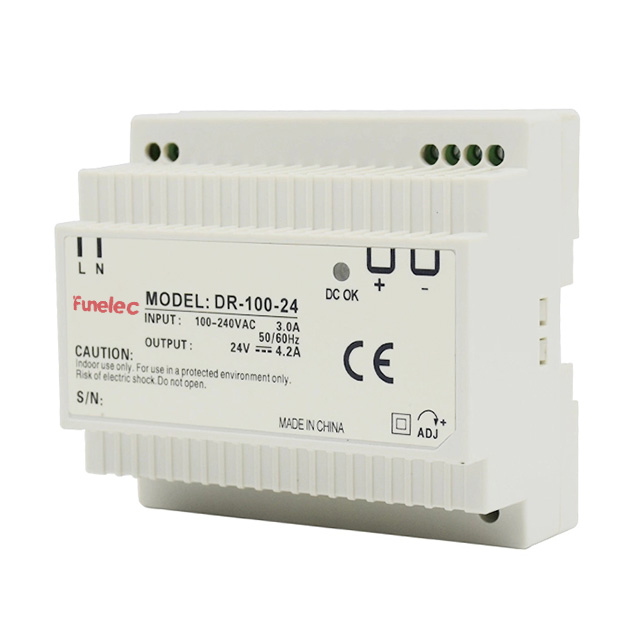

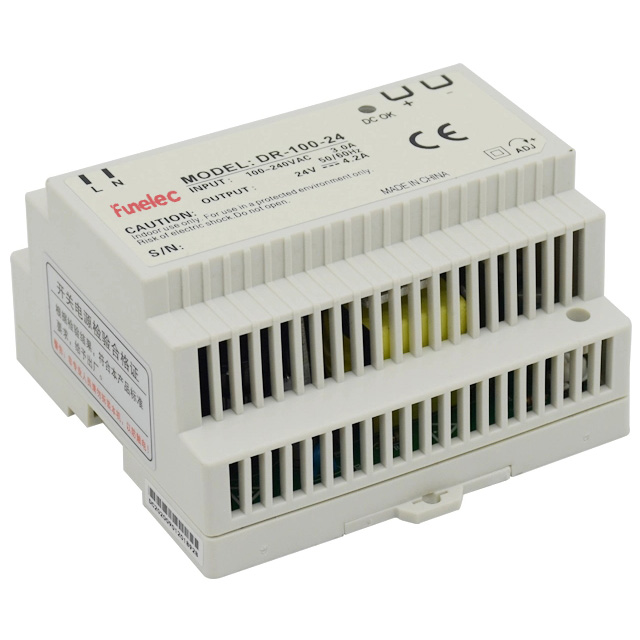

DR-100

DIN-rail switching power supply
Availability:
Quantity:
  • DR-100
  • AAVN MEN WELL
Model
DR-100-12DR-100-24
OutputDC   output Voltage12V24V
Voltage tolerance±1.0%±1.0%
Rated Current8.3A4.1A
Related Power100w100w
Wave&Noise100mVp-p100mVp-p
Adjustable range for DC Voltage±10%±10%
Set up,rise,hold up time800ms  600ms  50ms
InputVoltage   Range85 ~ 264VAC  47-63HZ 120-370VDC
Input Current1.5A/115VAC 0.5A/230VAC
Efficiency77%82%
AC inrush currentCold start current  15A/115V 30A /230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated output power 105-135% start overload   protection
Protection type: cutoff output,   recovery after restart power
Over voltage17.2V-20.2V27.6V-32.4V
Hiccup mode,recovers   automatically after fault condition
EnvironmentWorking   temp humidity-10~+60°C 20%~90%RH
Stor temp, humidity-20~+85°C 20%~90%RH Non-condensing
SafetyWithstand voltageI/P-O/P:1.5KVAC  1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
StandardSafety   standardFit UL1012
ReferDesign refer to GB4943,UL60950,EN60950
EMC standardDesign refer to GB9254,EN55022 Class A
SizesizeL78*W93*H56mm
Package0.63kg, 40 pcs
