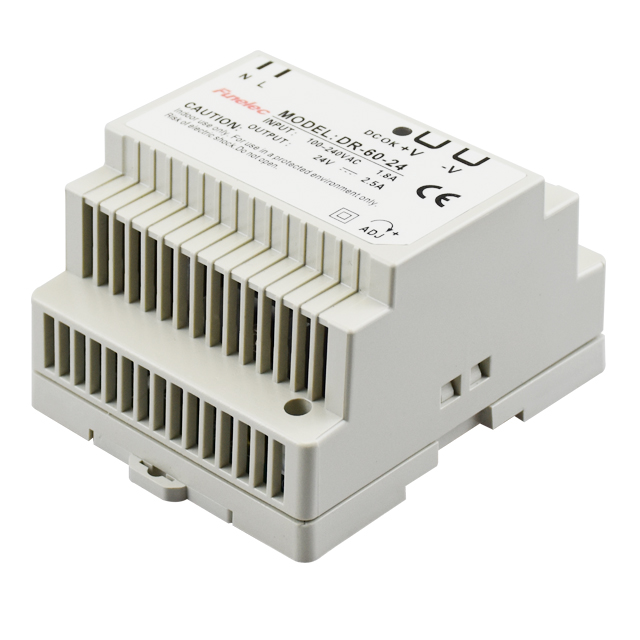

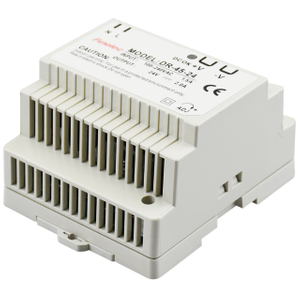

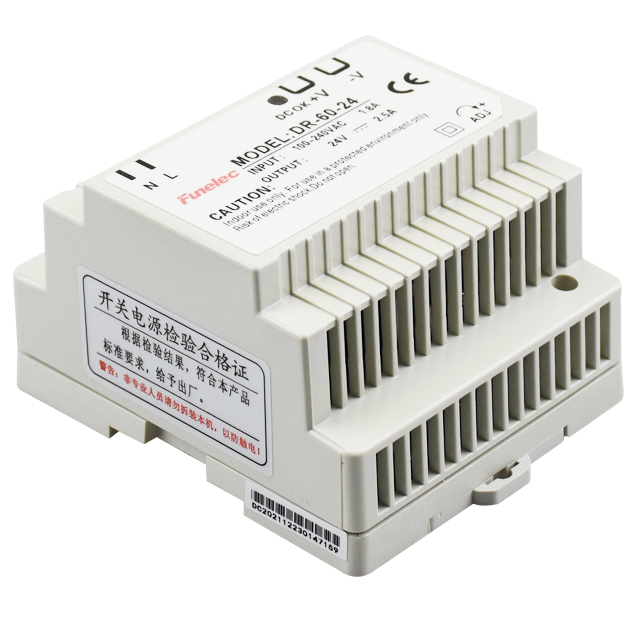

DR-60

DIN-rail switching power supply
Availability:
Quantity:
  • DR-60
  • AAVN MEN WELL
Model
DR-60-5DR-60-12DR-60-24
OutputDC   output Voltage5V12V24V
Voltage tolerance±1.0%±1.0%±1.0%
Rated Current12A5A2.5A
Related Power60w60w60w
Wave&Noise80mVp-p100mVp-p100mVp-p
Adjustable range for DC Voltage±10%±10%±10%
Set up,rise,hold up time800ms  600ms  50ms
InputVoltage   Range85 ~ 264VAC  47-63HZ 120-370VDC
Input Current1.5A/115VAC 0.5A/230VAC
Efficiency77%77%82%
AC inrush currentCold start current  15A/115V 30A /230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated output power 105-135% start overload   protection
Protection type: cutoff output,   recovery after restart power
Over voltage13.8V-16.2V17.2V-20.2V27.6V-32.4V
Hiccup mode,recovers   automatically after fault condition
EnvironmentWorking   temp humidity-10~+60°C 20%~90%RH
Stor temp, humidity-20~+85°C 20%~90%RH Non-condensing
SafetyWithstand voltageI/P-O/P:1.5KVAC  1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
StandardSafety   standardFit UL1012
ReferDesign refer to GB4943,UL60950,EN60950
EMC standardDesign refer to GB9254,EN55022 Class A
SizesizeL99*W97*H35mm
Package0.4kg,
