DR-240

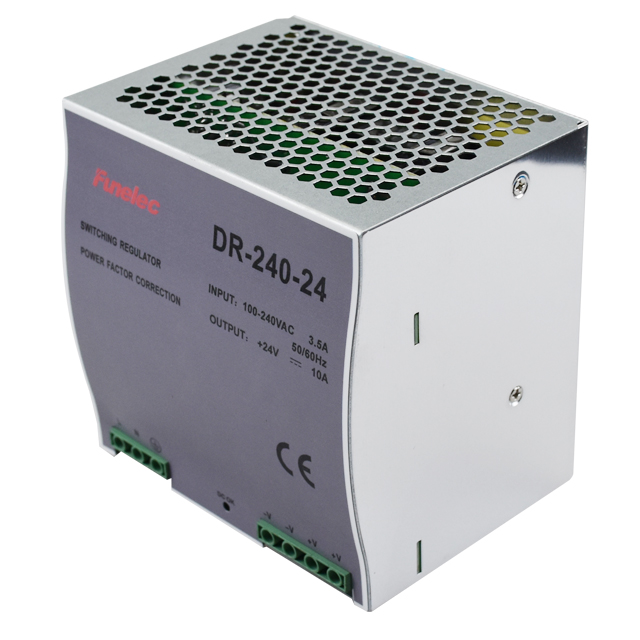

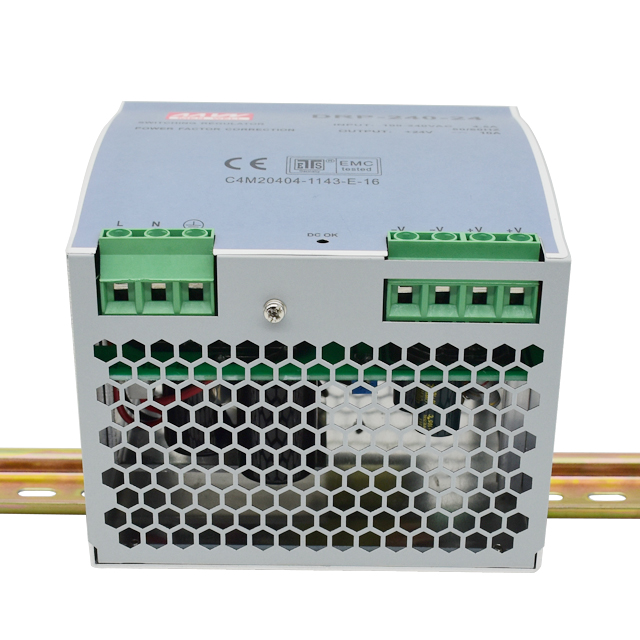

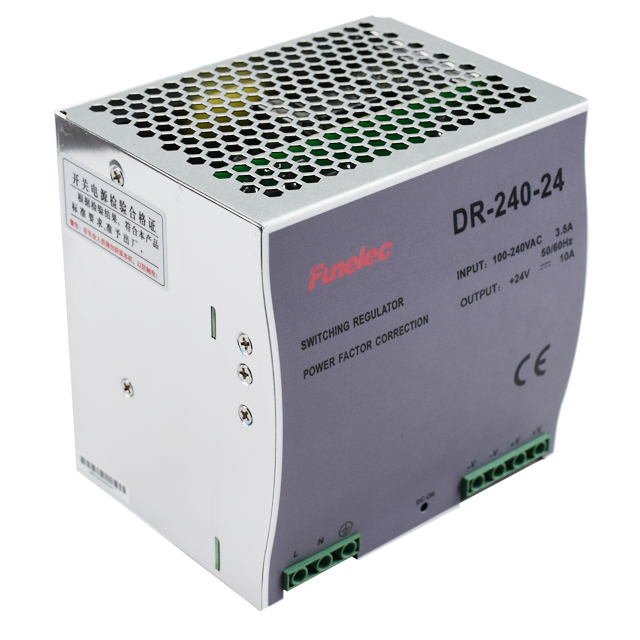

DR-240-24 DIN rail switching power supply CE certification
Availability:
Quantity:
  • DR-240
  • AAVN MEN WELL
Model
DRP-240-12DRP-240-24DRP-240-36DRP-240-48
OutputDC   output Voltage12V24V36V48V
Voltage tolerance±1.0%±1.0%±1.0%±1.0%
Rated Current20A10A6.6A5A
Related Power240w240w240w240w
Wave&Noise80mVp-p120mVp-p150mVp-p150mVp-p
Adjustable range for DC Voltage±10%±10%±10%±10%
Set up,rise,hold up time800ms  40ms  20ms
InputVoltage   Range85 ~ 264VAC  47-63HZ 120-370VDC
Input Current4.5A/115VAC 0.5A/230VAC
Efficiency80%84%85%%85%
AC inrush currentCold start current  15A/115V 30A /230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated output power 105-135% start overload   protection
Protection type: cutoff output,   recovery after restart power
Over voltage13.8V-16.2V27.6V-32.4V
55.2V-64.8V
Hiccup mode,recovers   automatically after fault condition
EnvironmentWorking   temp humidity-10~+60°C 20%~90%RH
Stor temp, humidity-20~+85°C 20%~90%RH Non-condensing
SafetyWithstand voltageI/P-O/P:1.5KVAC  1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
StandardSafety   standardFit UL1012
ReferDesign refer to GB4943,UL60950,EN60950
EMC standardDesign refer to GB9254,EN55022 Class A
SizesizeL125*W100*H125mm
Package1.2kg,
